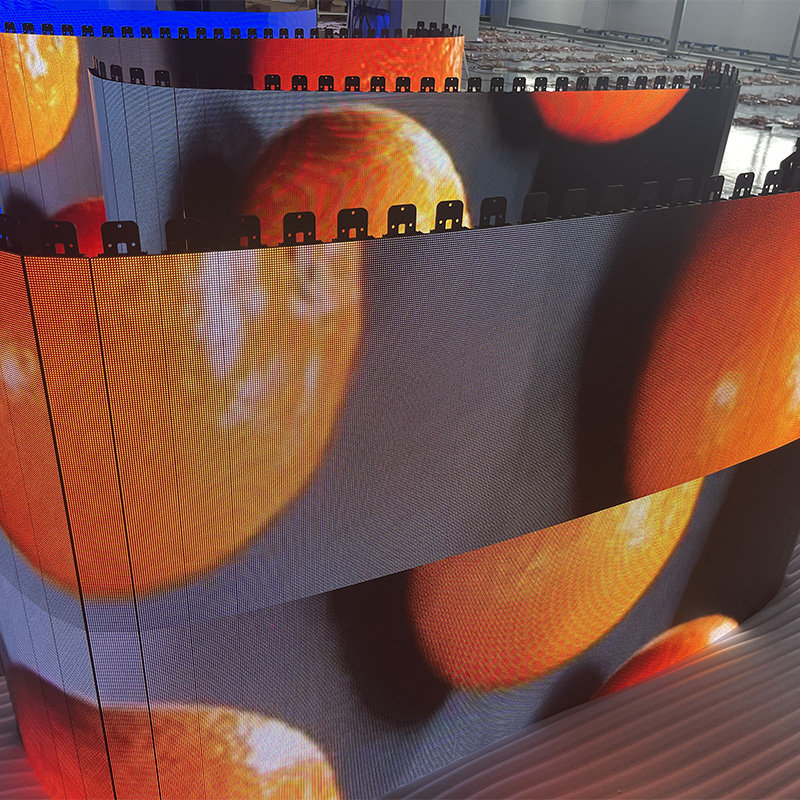

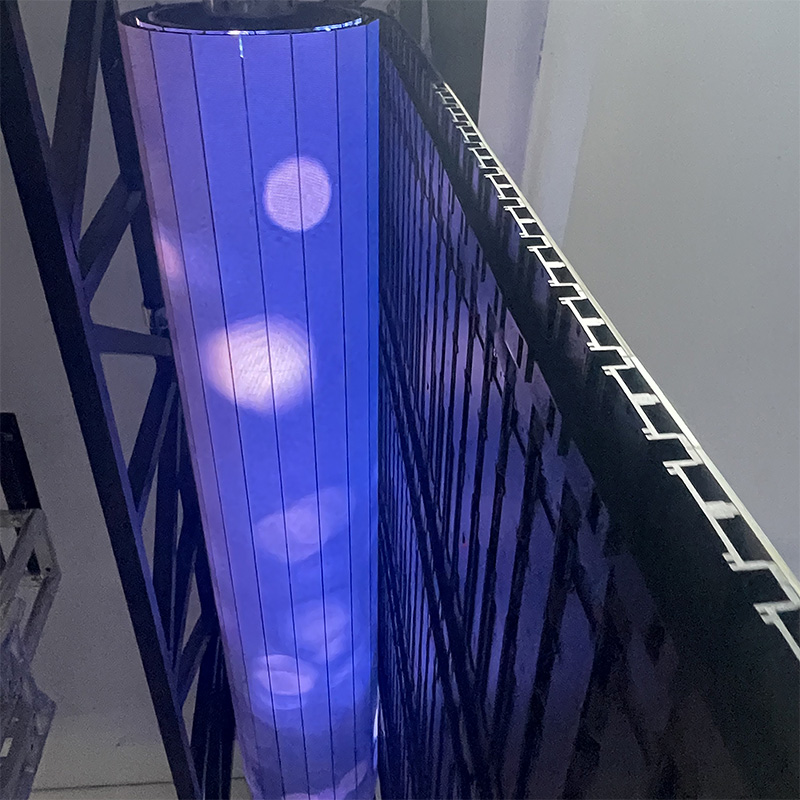

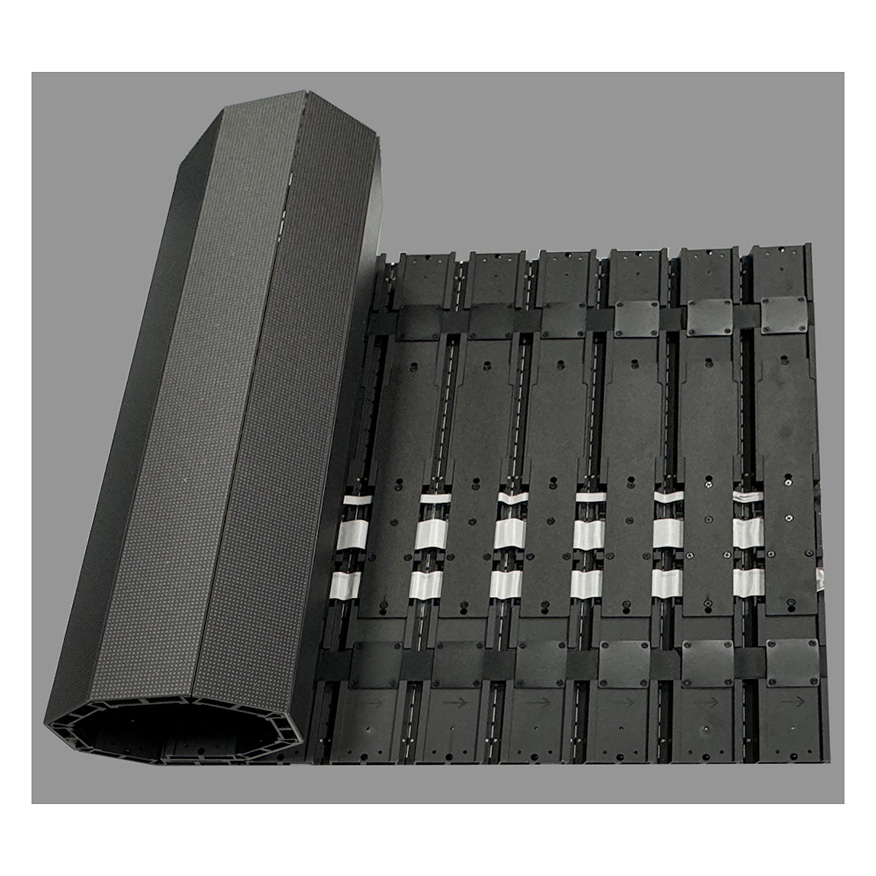

The advanced rollable LED screen design is multi-functional, allowing it to be hung or a floor LED.

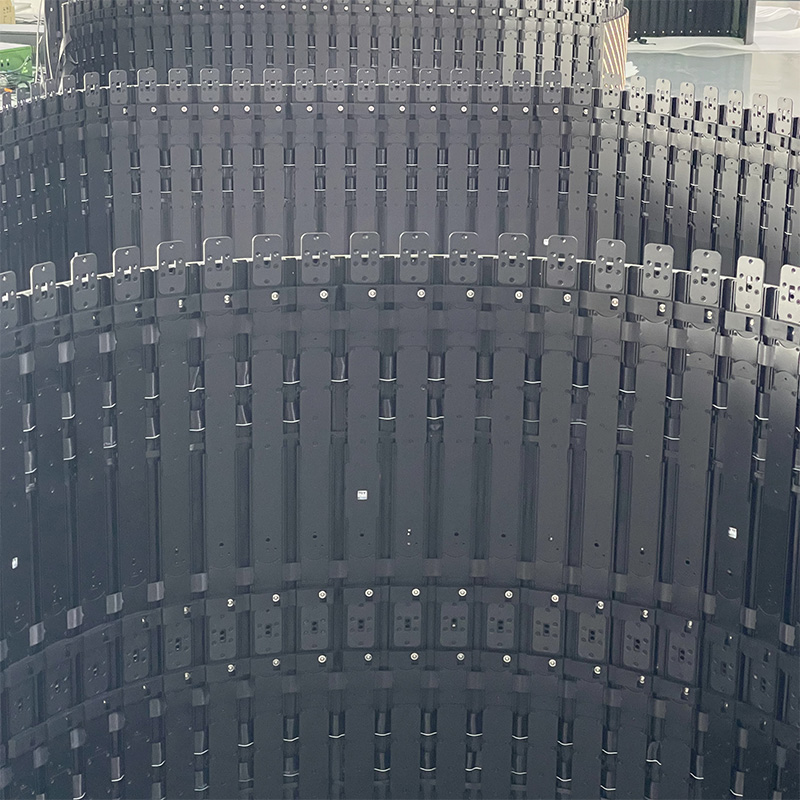

The modular splicing design enables the maximum screen size to reach H7*W10m

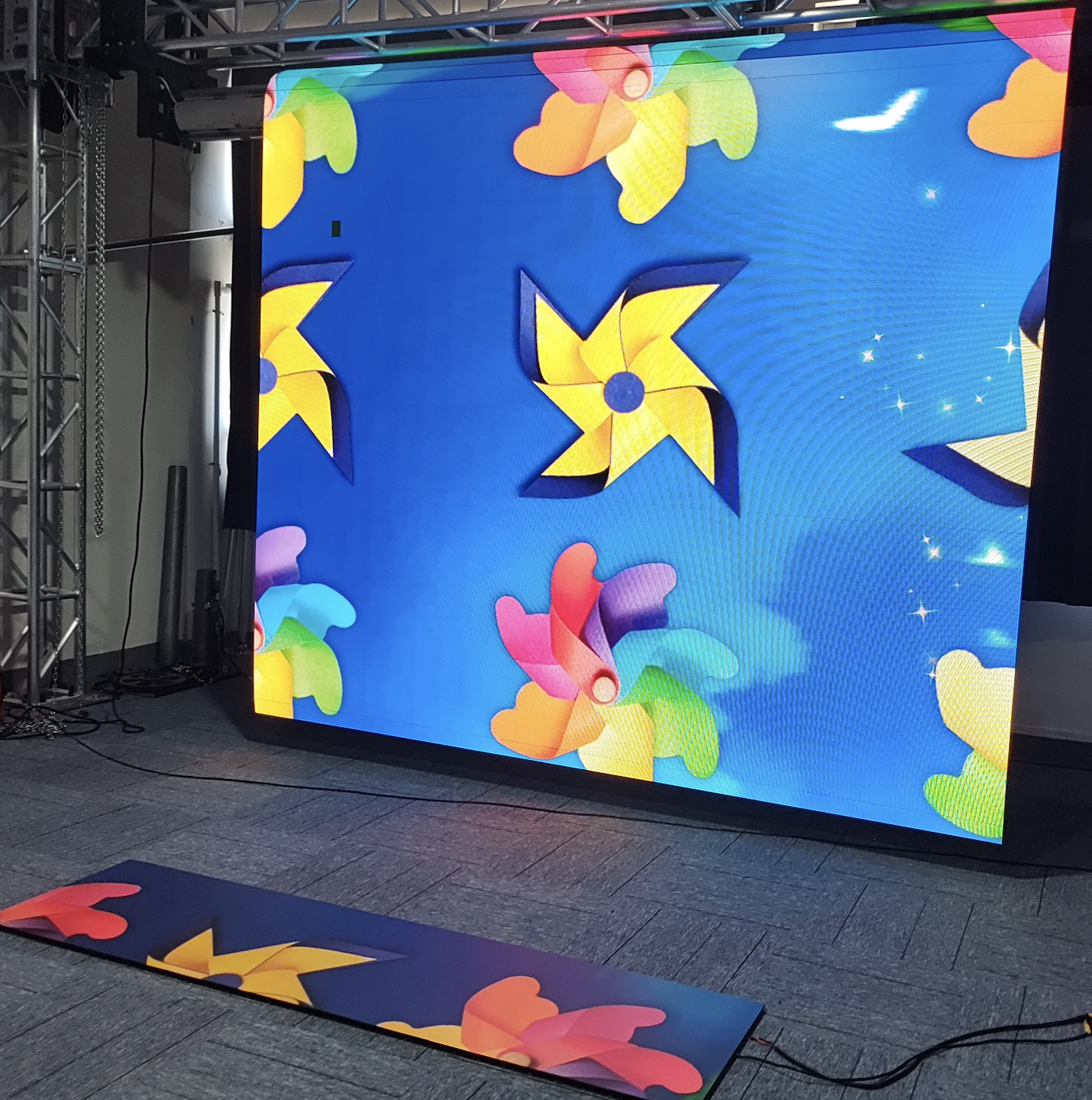

Built-in interactive sensor make the dancing floor led function possible
| SPEC | |||||
| Name | MG | ||||
| Pixel Pitch （mm） | 1.25 | 1.56 | 1.95 | 2.6 | 3.91 |
| Module Size （mm） | 500*62.5*17 | ||||
| Cabinet Size（mm） | 500*1000*17 | ||||
| Max Screen Size-H*W（m） | 4*10 | 3*10 | 4.5*10 | 7*10 | 7*10 |
| Luminous Source | Kinglight SMD1010 | SMD1212 | SMD1515 | SMD2121 | |
| Pixles Density （dot/sqm） | 640000 | 410881 | 262144 | 147456 | 65536 |
| Module Resolutions（dots） | 400*50 | 320*40 | 256*32 | 192*24 | 128*16 |
| Brightness（nits） | 600-800 | ||||
| Max Power Consumption(w/㎡) | 480 | ||||
| Product Weight（Kg/sqm） | 16--18 | ||||
| View Angle | 140-160° | ||||
| Floor Led | Yes | ||||
| Interactive function | Yes | ||||
| Motor for Rollup | Yes | ||||
| Refresh Rate (hz) | 3840-7680 | ||||
| IP Rating | IP54 | ||||
| Weight Load for Floor(kg) | 2000 | ||||
| Input Voltage（Vac/hz） | 100-240/ 50-60 | ||||
| Service Accessibility | Front/Rare | ||||
