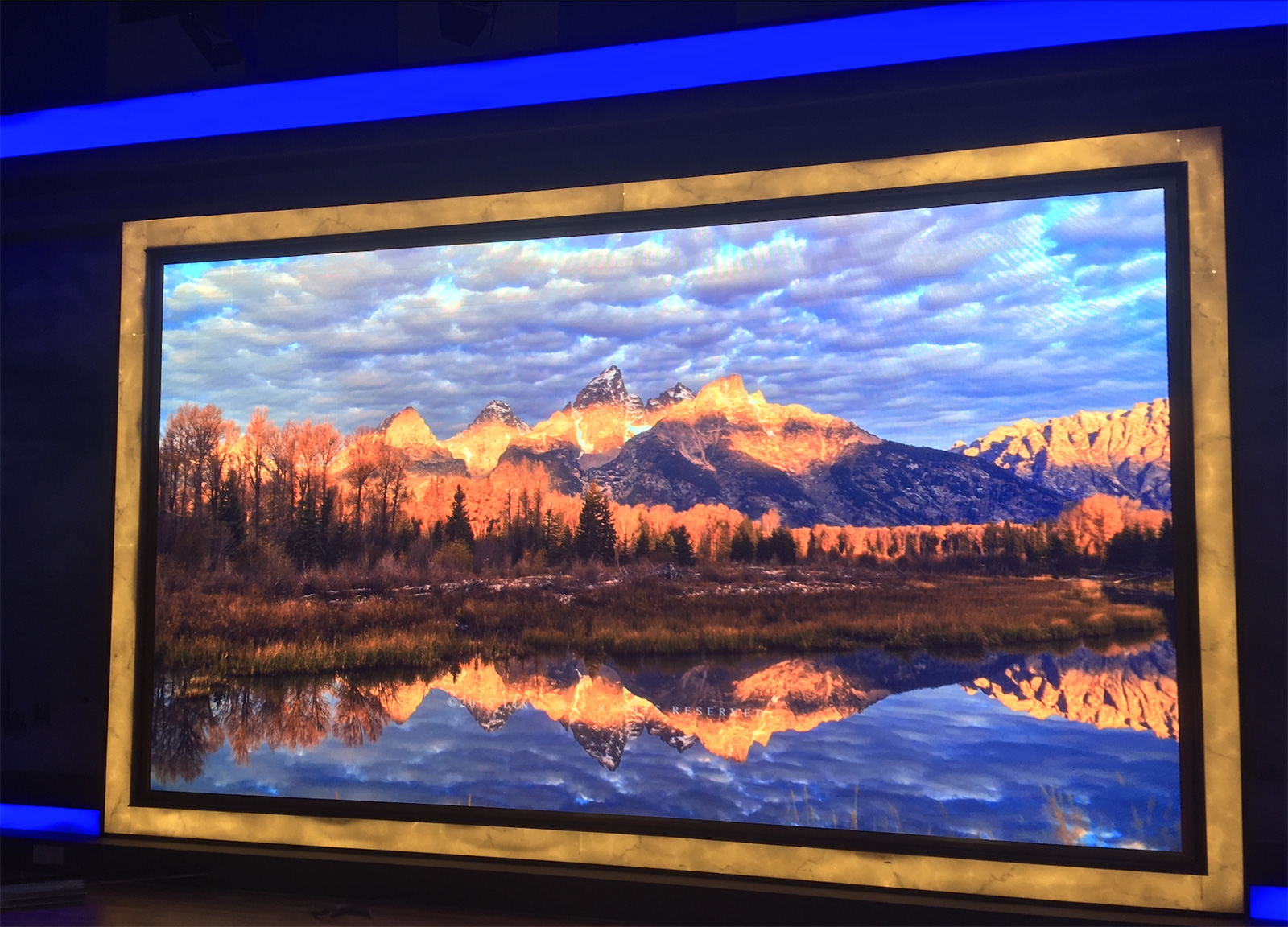

Fine pixel pitch for the indoor permanent installations.

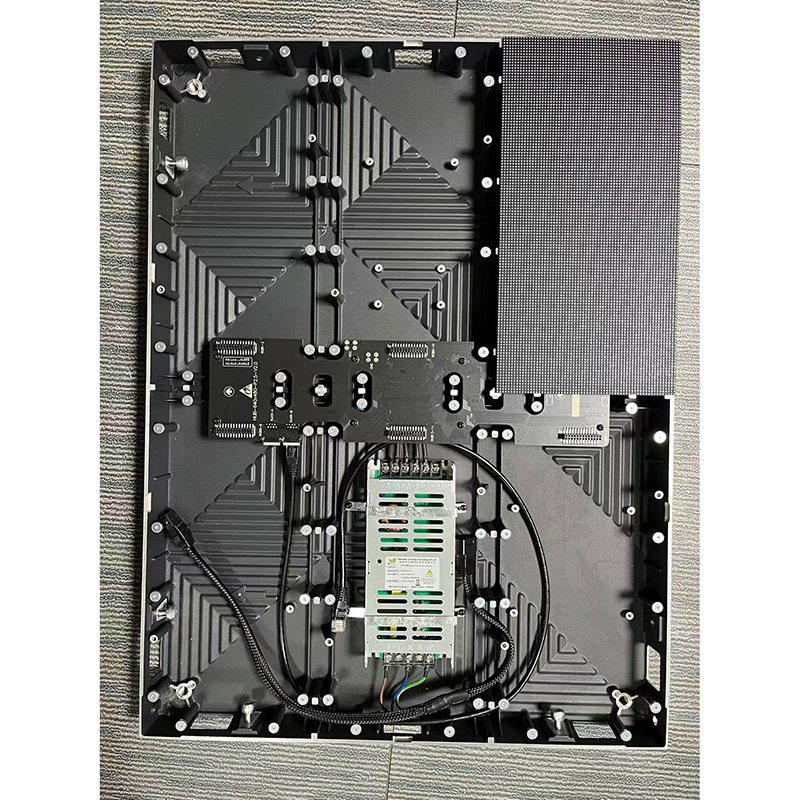

Features magnetic modules and robust cabinet.
Hub connection,Front service for easy replacement.
| SPEC | |||||
| Name | IDA | ||||
| Pxiel Pitch | P1.25 | P1.53 | P1.86 | P2.0 | P2.5 |
| Environment | Indoor | ||||

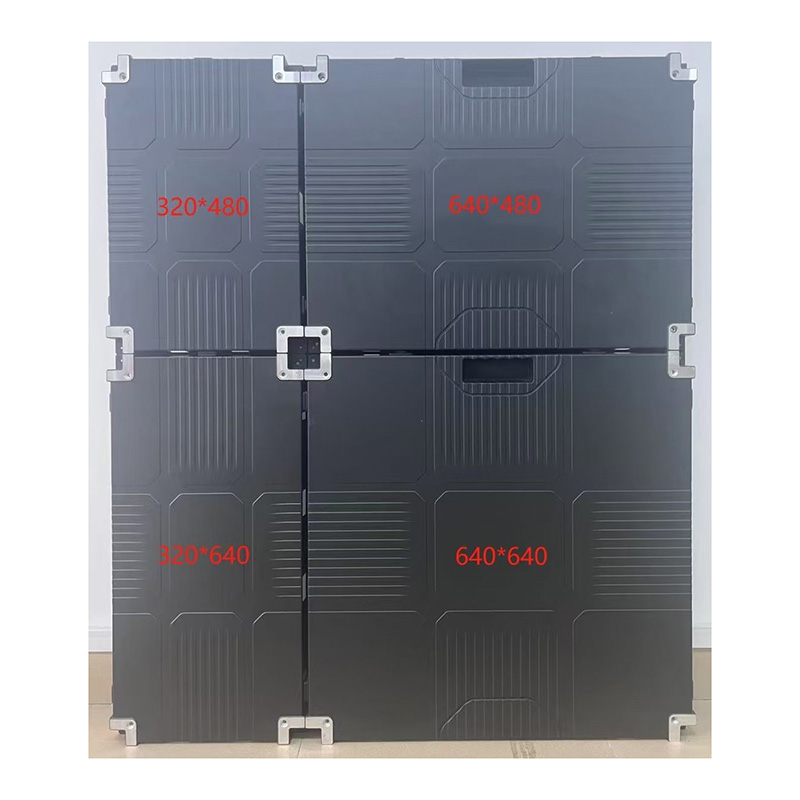

| Cabinet Size（mm） | 640*480*48mm （640*640. 640*320.480*320 cabinet available ） | ||||
| Module Size （mm） | 320*160 | ||||
| Module Resolutions（dots） | 256*128 | 208*104 | 172*86 | 160*80 | 128*64 |
| Pixel Density（dots/sqm） | 640 000 | 427 716 | 289 444 | 250 000 | 160 000 |
| Brightness（nits） | 600-1200 | ||||
| Refresh Rate (hz) | 3840-7680 | ||||
| Cabinet Material | Die-casting Aluminum | ||||
| Input Voltage（Vac/hz） | 100-240/ 50-60 | ||||
| Max Power Consumption(w/㎡) | 600 | ||||
| Products Weight(kg) | 6 | ||||
| Service Accessibility | Front Maintenance | ||||
