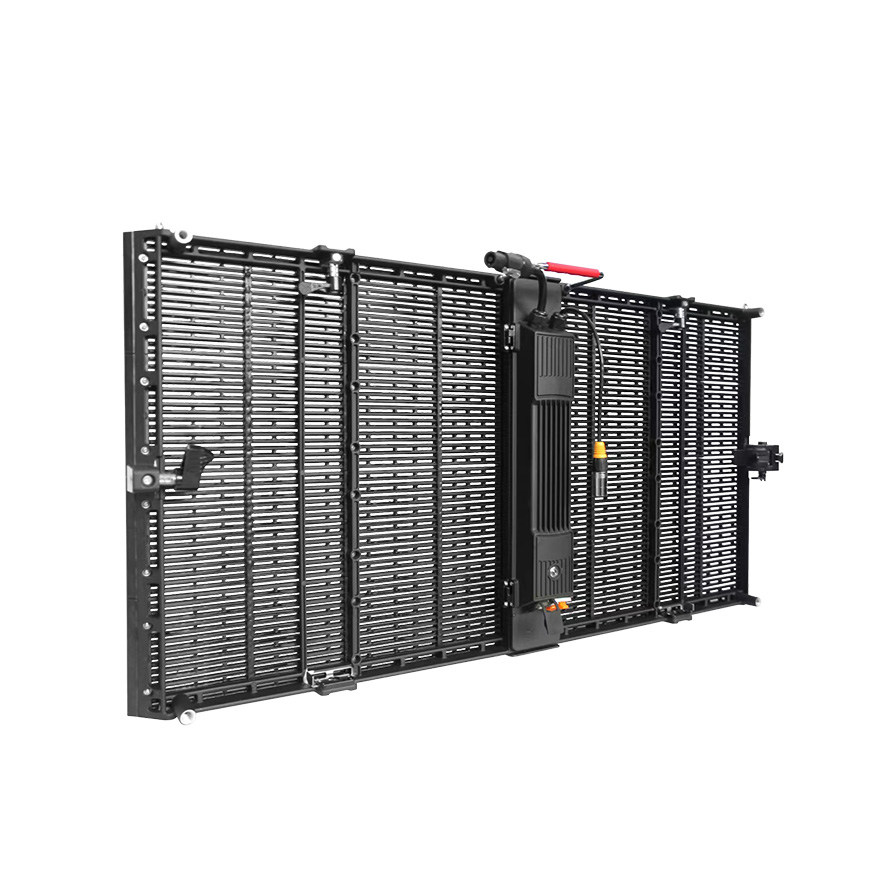

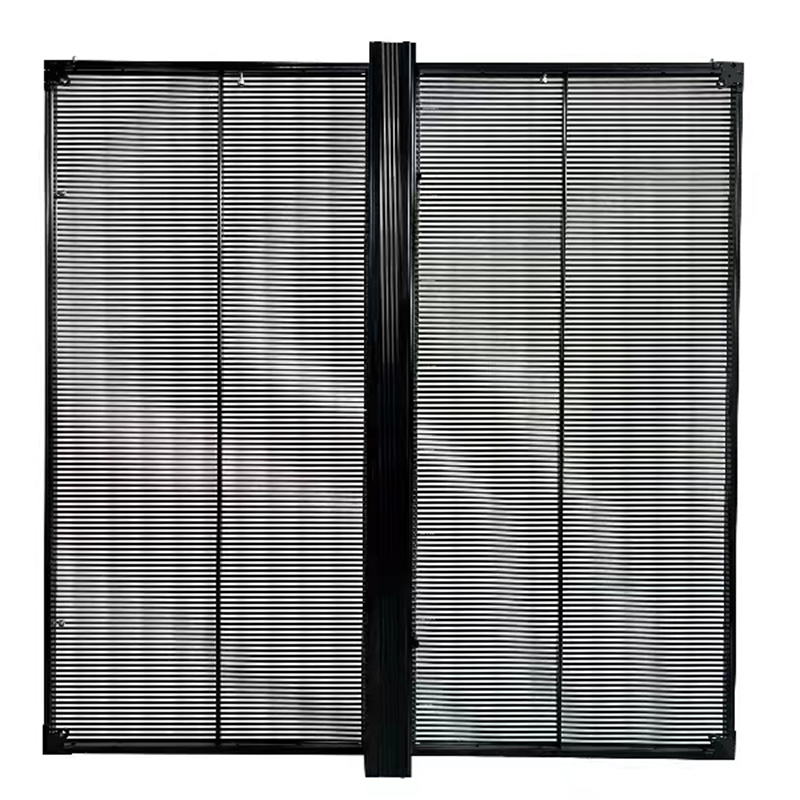

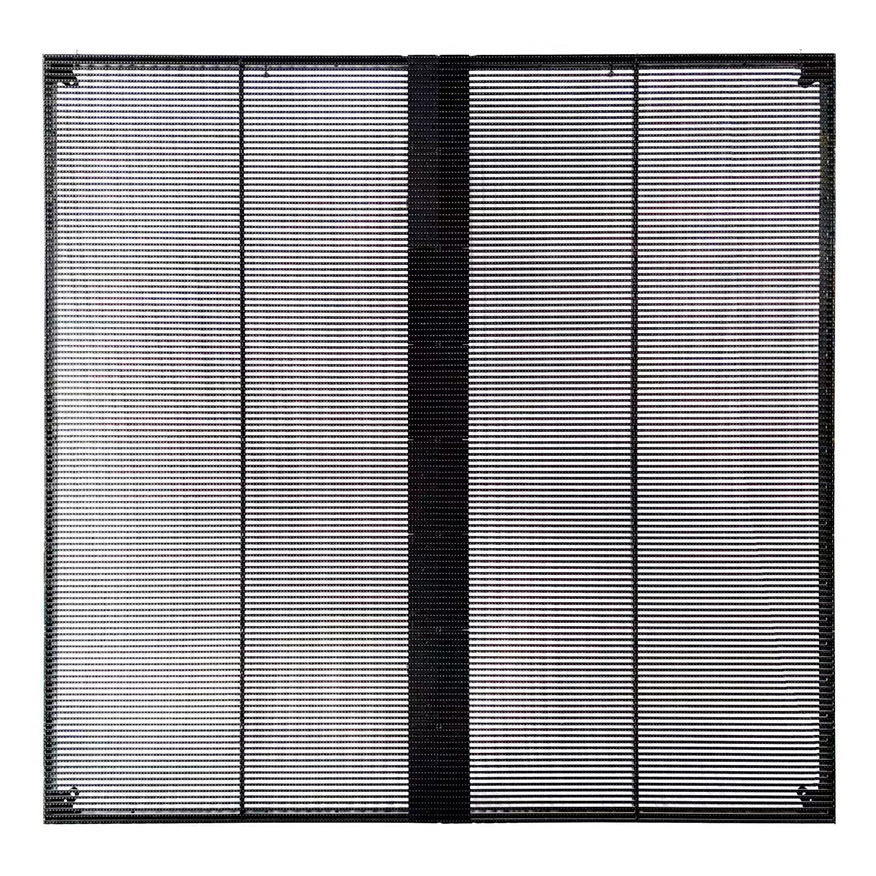

500*1000 cabinet for the rental. 1000*1000 for permanent installations
Ultra high transparency led design. ultra lightweight.
Curvable cabinet and fast lock. robust aluminum frame. fast heating dissipation.
| SPEC | ||
| Name | TLR500 | TLF1000 |
| Cabinet Size（mm） | 500*1000 | 1000*1000 |
| Module Size （mm） | 250*125 | 500*125 |
| Pixel Pitch（mm） | 3.9-7.8 | |
| Cabinet Resolution (dot) | 128*128 | 256*128 |
| Environment | Indoor&Outdoor | Indoor |
| IP Rating | IP65 | IP54 |
| Brightness（nits） | 800-5000 | 800-3500 |
| Refresh Rate (hz) | 3840-7680 | 3840-7680 |
| Products Weight(kg) | 6.5 | 8 |
| Input Voltage（Vac/hz） | 100-240/ 50-60 | |
| Max Power Consumption(w/㎡) | 800 | 600 |
| Cabinet Material | Die-casting Al | Aluminum |
| Lifespan | 100 000 hrs | 10 000 hrs |
| Service Accessibility | Front and Rare Maintenance | |
