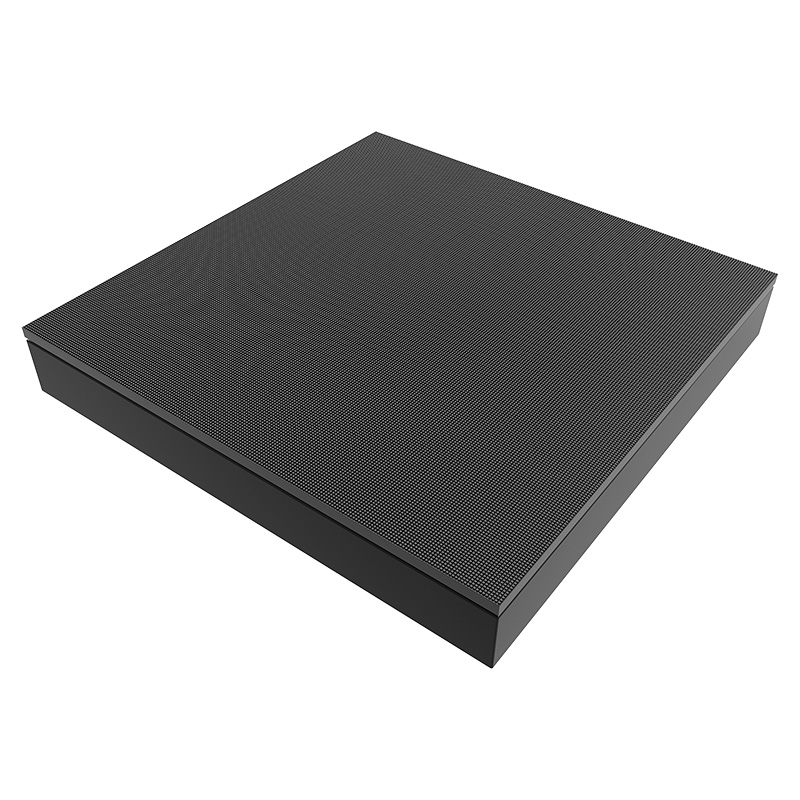

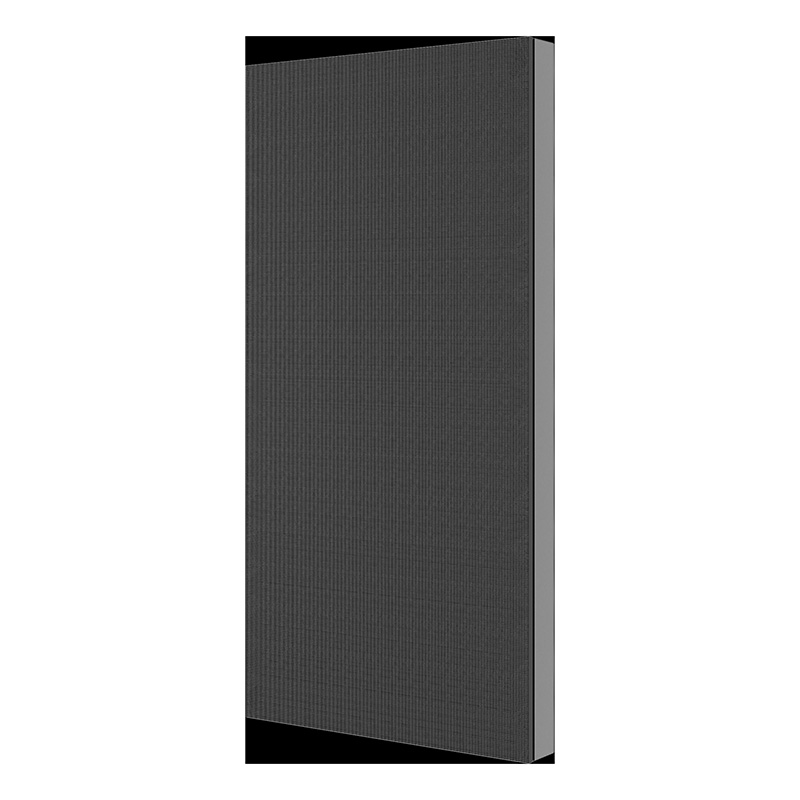

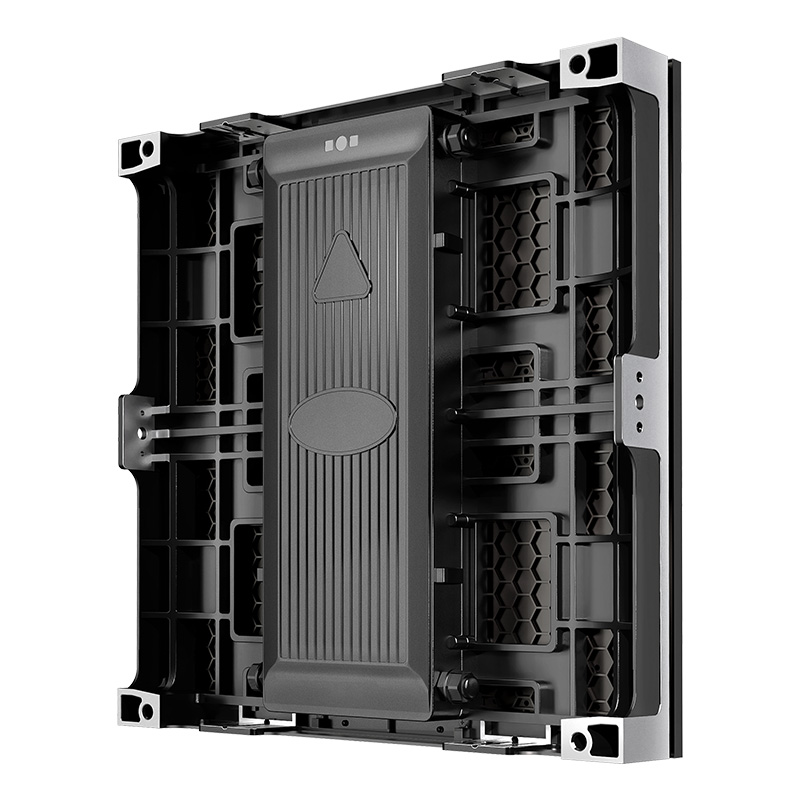

500*500， 500*1000 cabinet with Iron and die-casting materials.

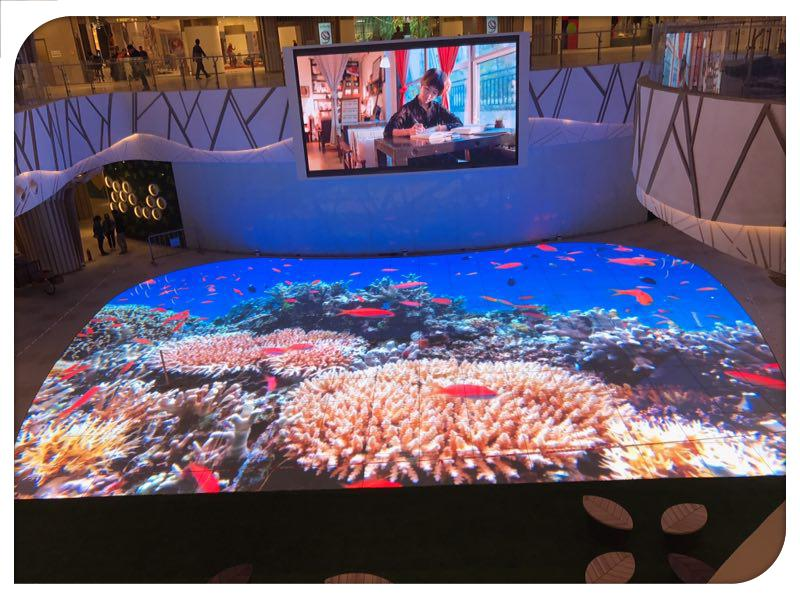

Indoor and outdoor floor led solution available，enables wall-floor and floor interaction.
The built-in optic sensor accurately capture human interaction

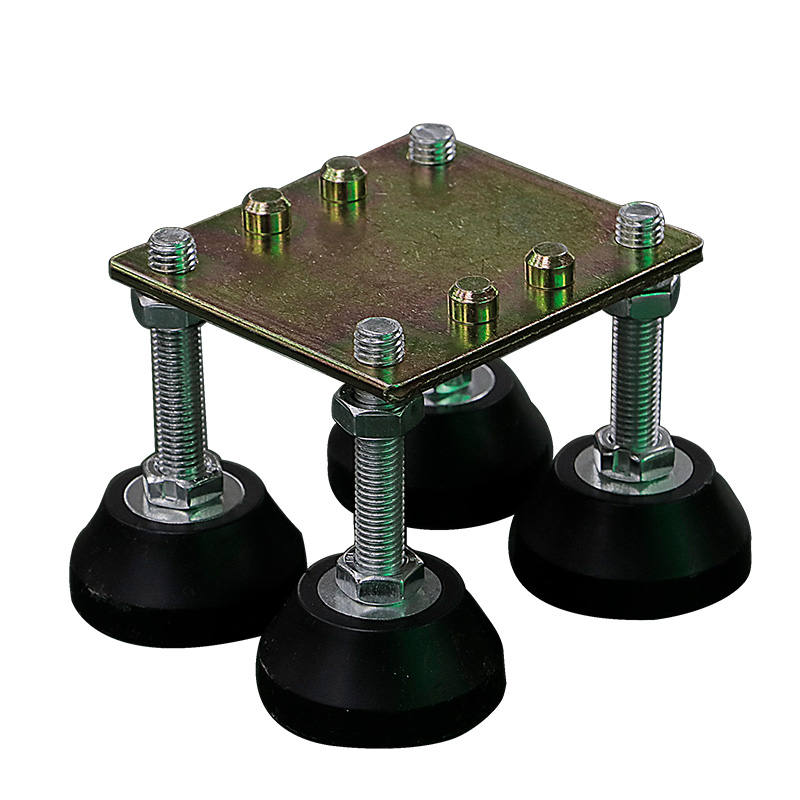

High weight load capacity up to 3 tons
The design features a rapid heat dissipation and can be paired with a silent heat dissipation system
| SPEC | ||||||||||
| Name | DFL500& DFL 1000 | |||||||||
| Pixel pitch | 1.56 | 1.86 | 1.95 | 2.6 | 3.91 | 4.81 | 5.2 | 6.25 | 7.8 | 8.9 |

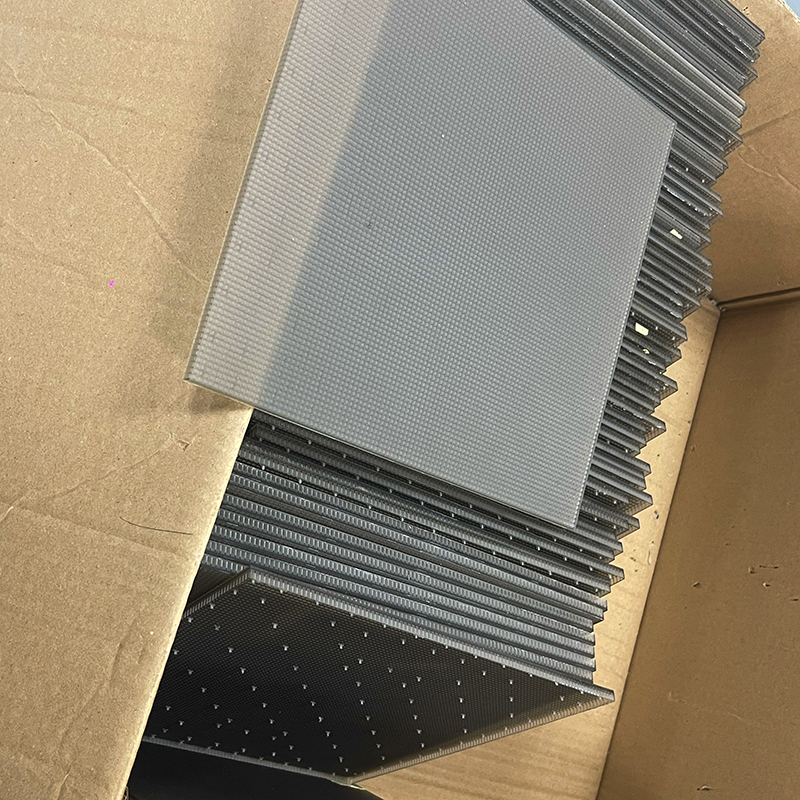

| Surface Treatment | GOB | PC Mask | ||||||||
| Environment | Indoor | Indoor & Outdoor | ||||||||
| IP Rating | IP54 | IP66 | ||||||||
| Cabinet Size（mm） | 500*500& 500*1000 | |||||||||
| Module Size （mm） | 250*250 | |||||||||

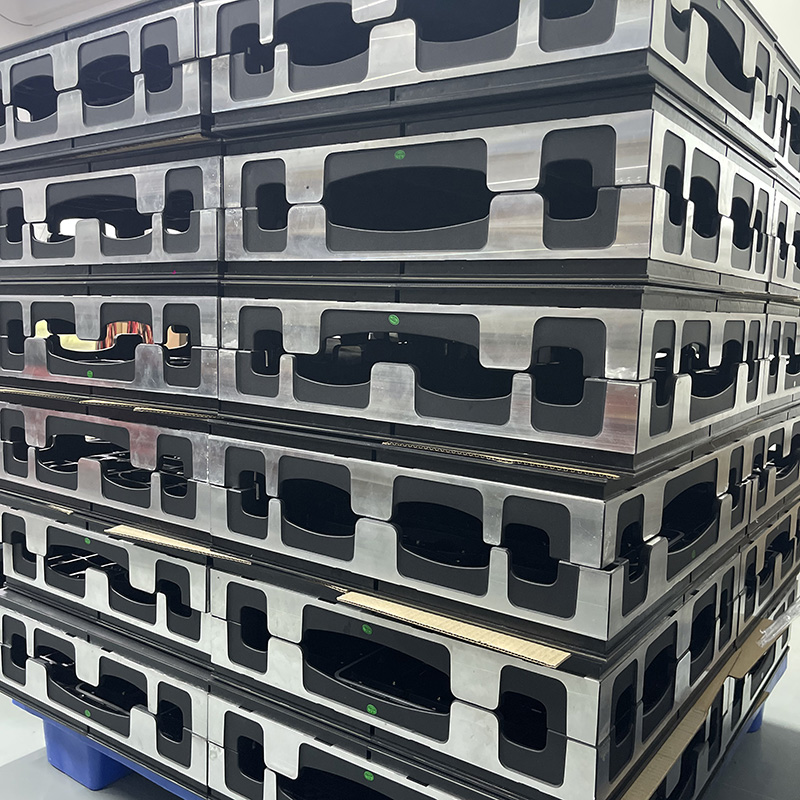

| Cabinet Material | Metal Iron& Die-casting Aluminum | |||||||||
| Max Power Consumption(w/㎡) | 800 | 800-1200 | ||||||||
| Products Weight(kg/Sqm) | 44 | 44-50 | ||||||||
| Refresh Rate (hz) | 3840-7680 | |||||||||
| Brightness（nits） | 600-1200 | 600-6000 | ||||||||
| Working Temperature | Minus 25--65℃ | |||||||||

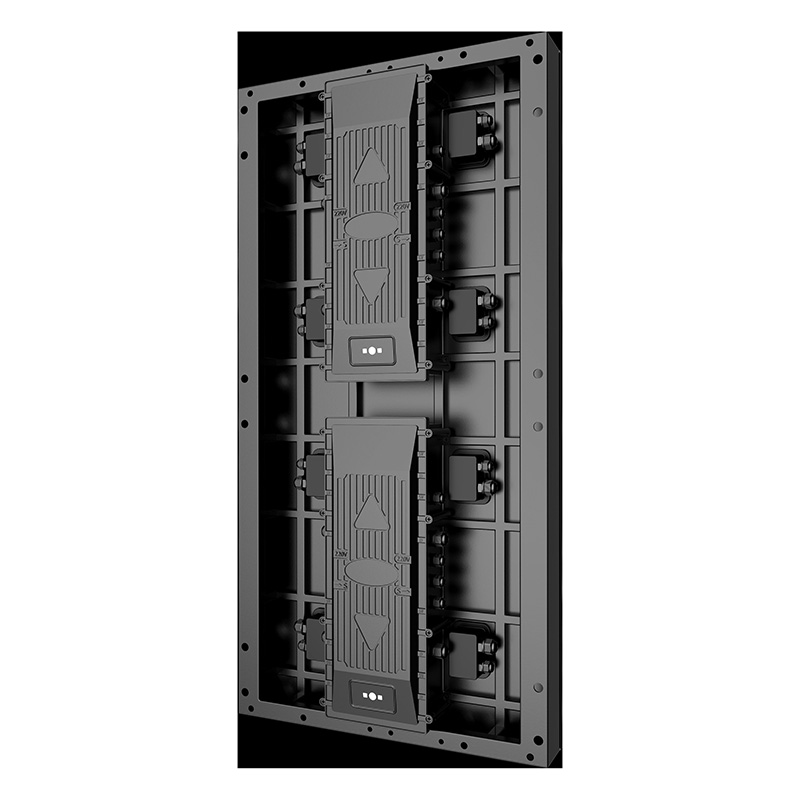

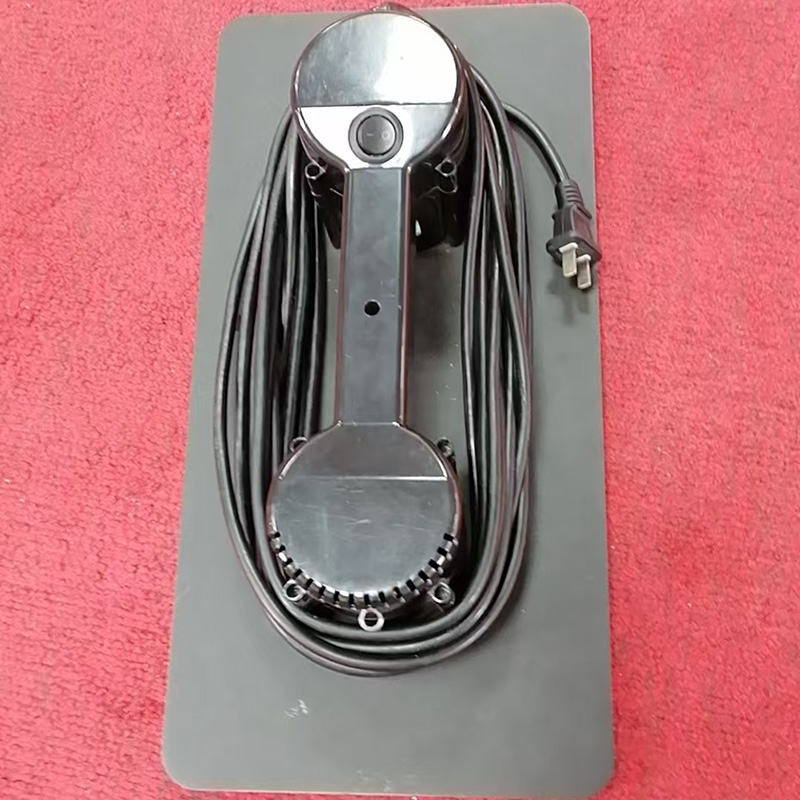

| Service Accessibility | Front Maintenance with Suction cup. Rare service for the Driver box and HUB | |||||||||
