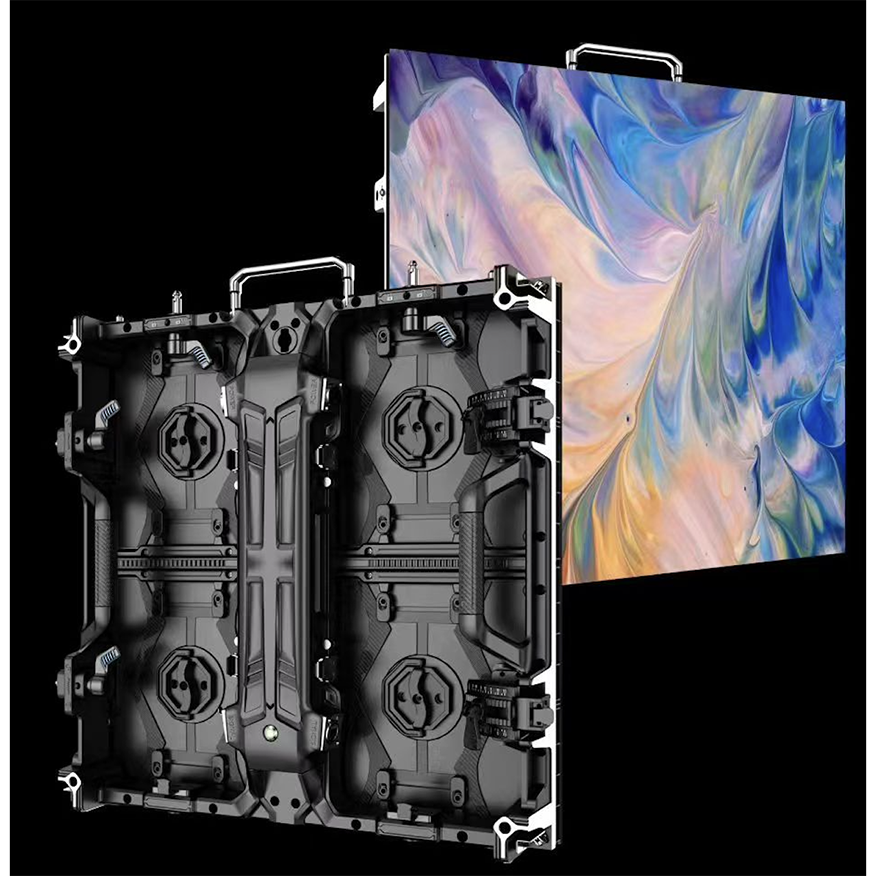

Die-casting aluminum Cabinet-Two types of cabinet size. 500*500, 5000*1000mm.
Flush cache ic and module memorization,easy replacement of cards and modules.
Compatible with Novastar and Colorlight system.

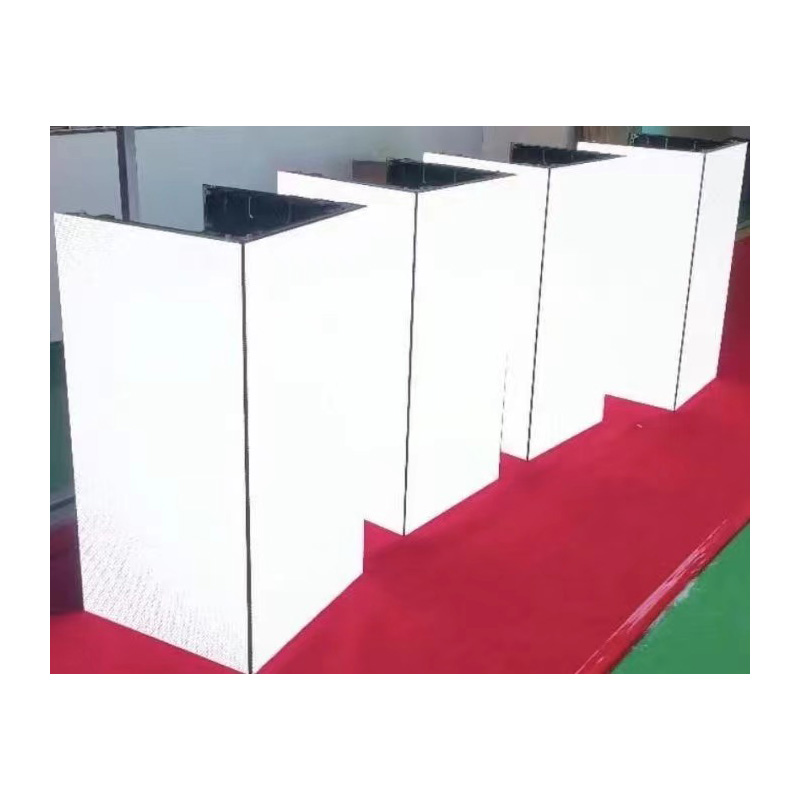

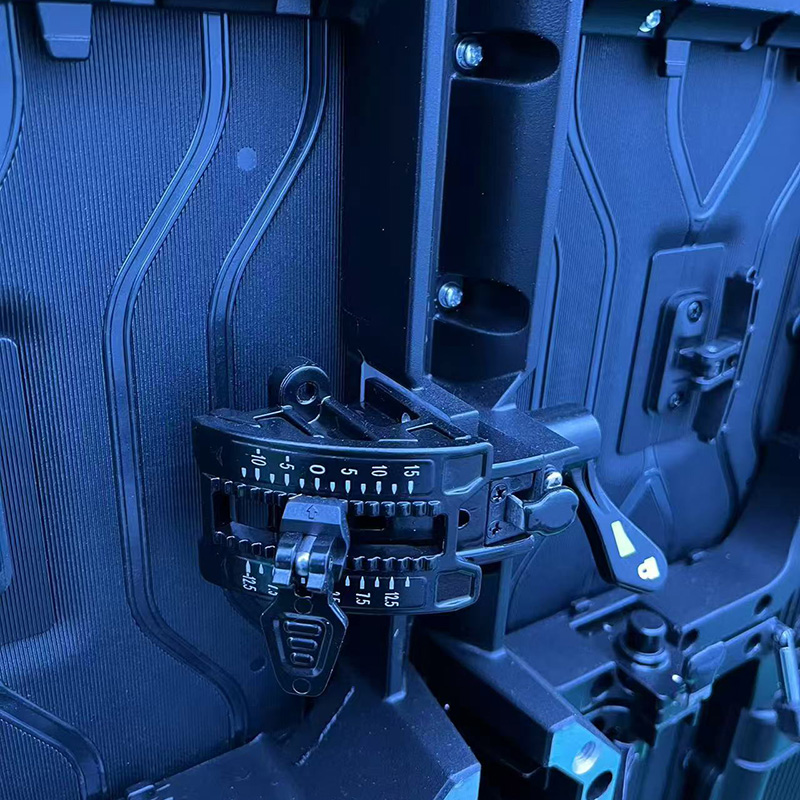

Curved and 45°cabinet splicing configurations possible

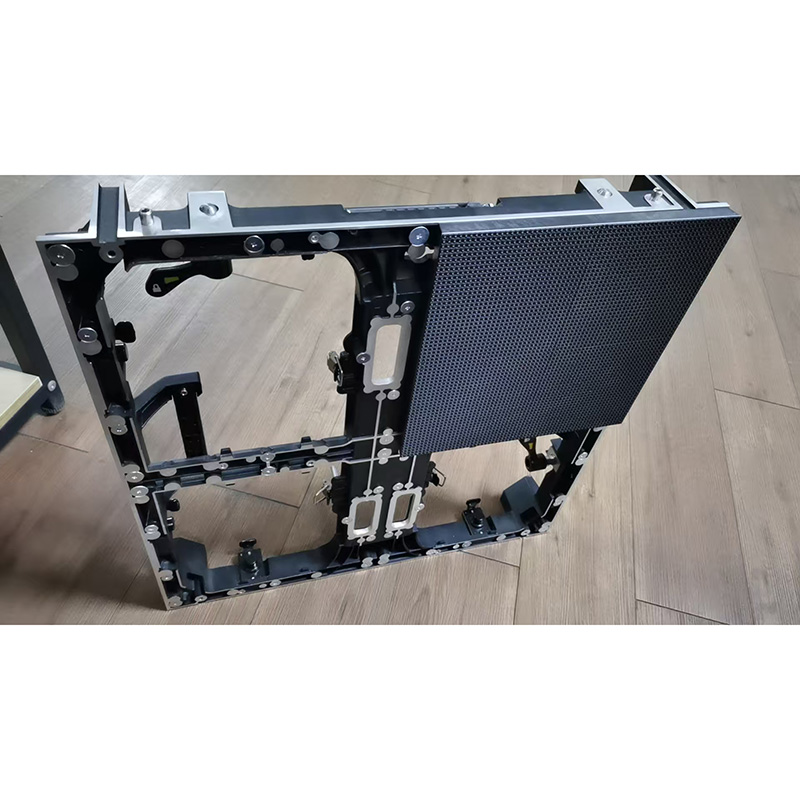

Quick front and rare maintenance service accessible
| SPEC | |||||
| Name | R500& R1000 | ||||
| Pixel Pitch（mm） | P1.9 | P2.6 | P2.97 | P3.91 | P4.81 |
| Environment | Indoor | Outdoor | |||
| Cabinet Size（mm） | 500*500*85mm & 500*1000*85 | ||||
| Module Size （mm） | 250*250 | ||||
| Module Resolutions（dots） | 256*256 | 192*192 | 168*168 | 128*128 | 104*104 |
| 256*512 | 192*384 | 168*336 | 128*256 | 104*208 | |
| Pixels Density（dots/sqm） | 262144 | 147456 | 112896 | 65536 | 43264 |
| Brightness（nits） | Indoor 600-1200& Outdoor:4500-6000 | ||||
| Refresh Rate (hz) | 3840-7680 | ||||
| Grey Level (bit) | 14-22 | ||||
| Max Power Consumption(w/㎡) | 800 | ||||
| Input Voltage（Vac/hz） | 100--240/ 50-60HZ | ||||
| IP Rating | IP54 for indoor . IP65 for outdoor | ||||
| Products Weight(kg) | 7kg (R500). 12kg(R1000) | ||||
| Service Accessibility | Front and Rare Maintenance | ||||
