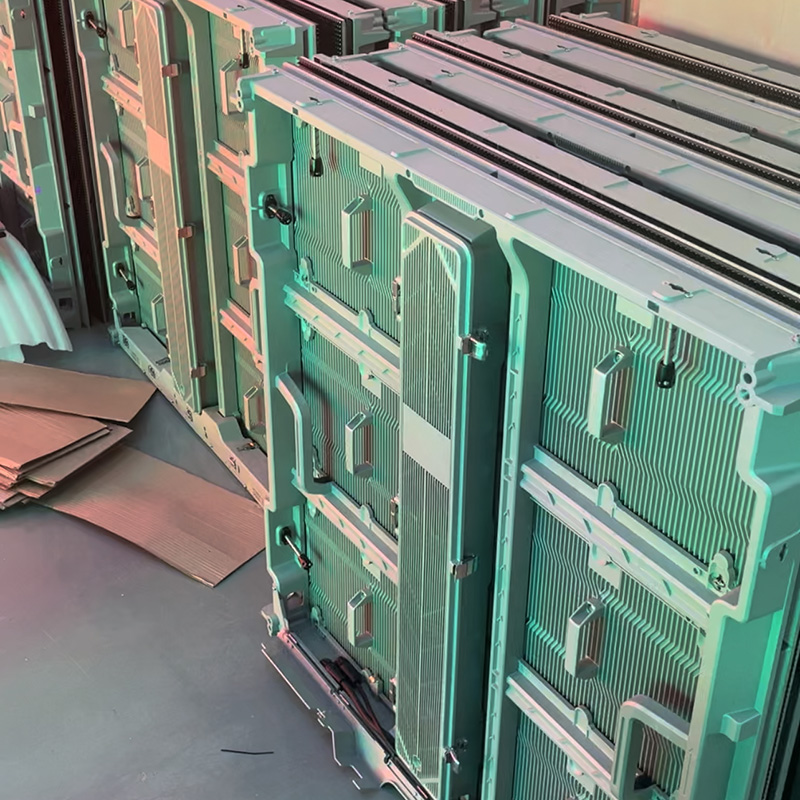

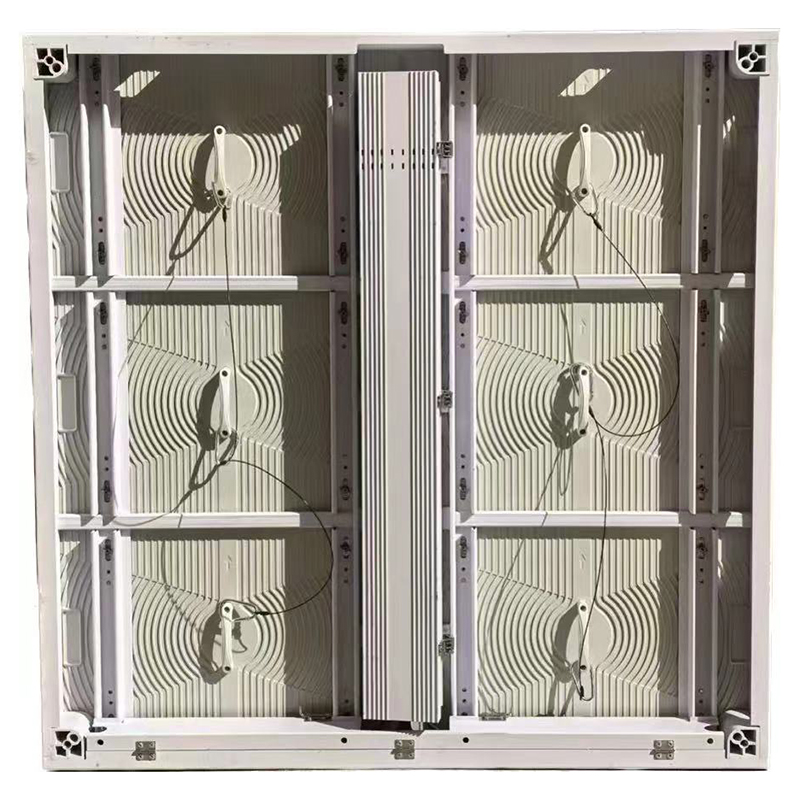

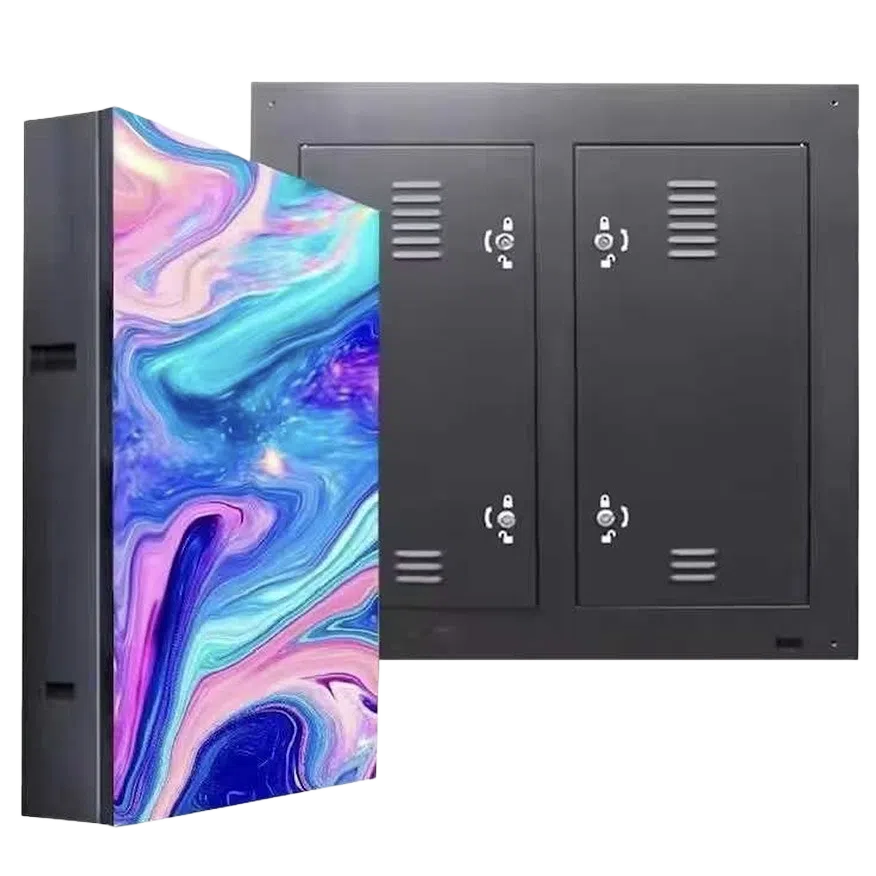

Iron, Aluminum and Die-casting aluminum cabinet for option.

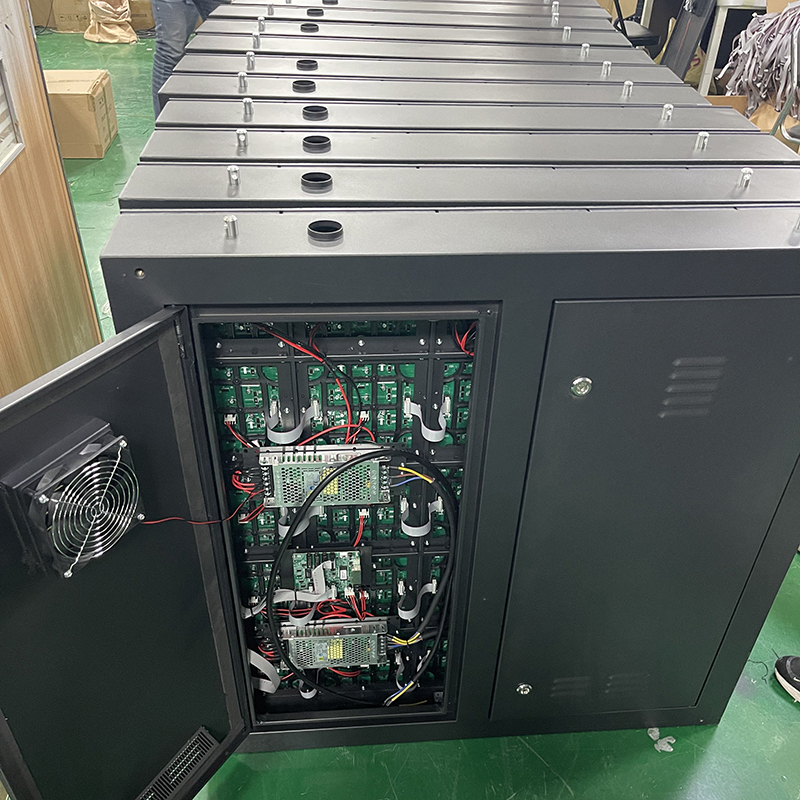

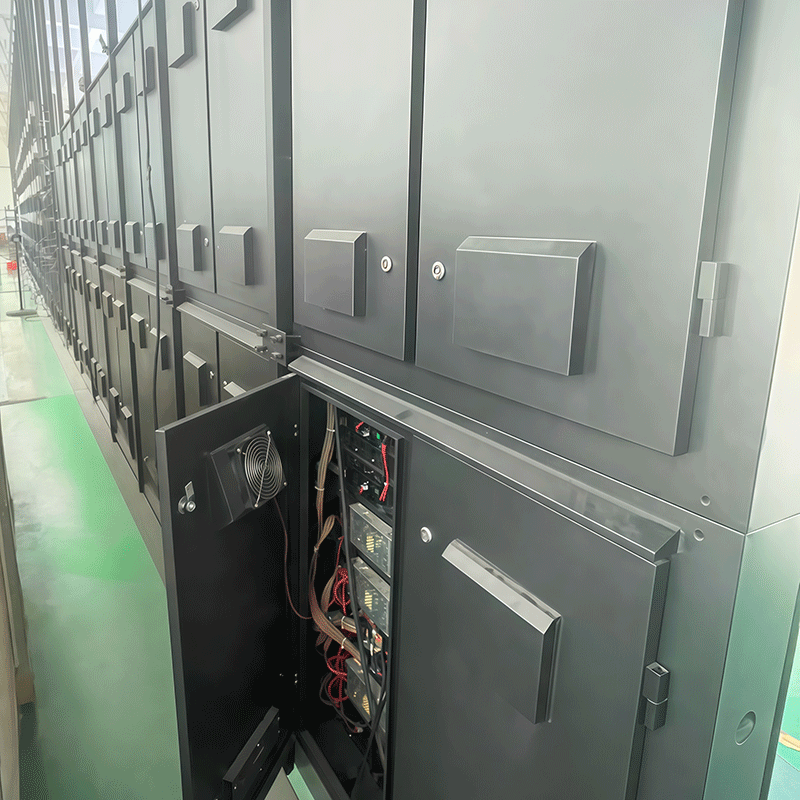

Fans cooling, passive heating dissipation design. high-efficient thermal conductivity.
IP66 waterproof grade, 5v flame reterdant materials.

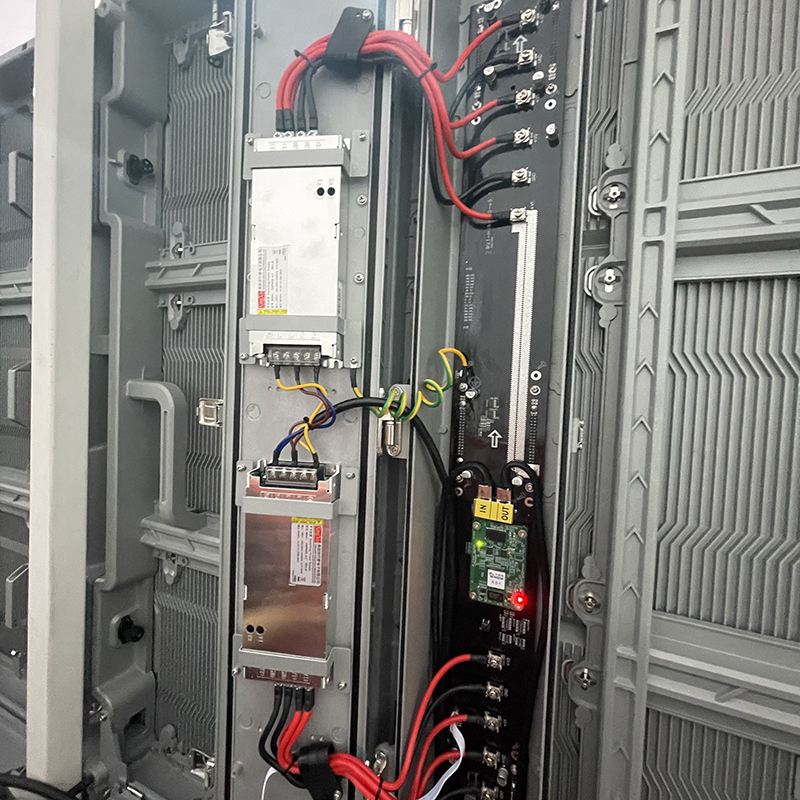

Wire connection and hub connection, makes your projects requirements fully covered
High beightness up to 12000nits，custom available.

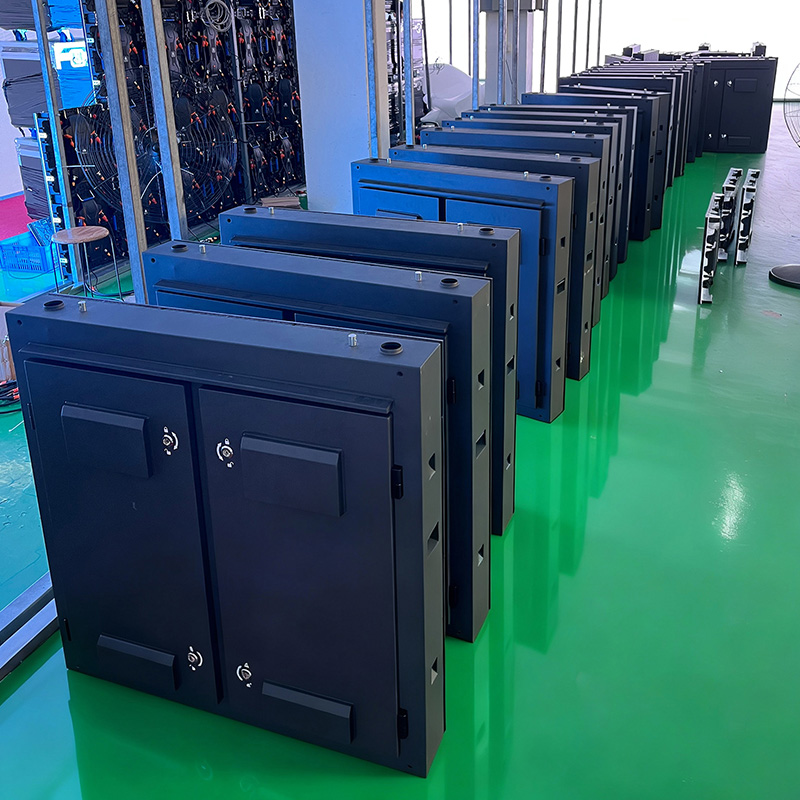

Multiple cabinet size available for 960*960，1000*1000,etc
| SPEC | ||||
| Name | OA960. ODA960. OI960. | |||
| Pixel Pitch | 6.67 | 8 | 10 | 16 |
| Luminous Source | LED SMD | SMD& DIP | DIP | |
| Environment | OUTDOOR | |||
| Cabinet Size（mm） | 960*960*100. 960*960*85（Custom Avaialble） | |||
| Module Size （mm） | 320*320 480*320. 320*160 | |||
| Pixels Density（dots/sqm） | 22500 | 15625 | 10000 | 3969 |
| Brightness（nits） | 4500-12000 | |||
| Refresh Rate (hz) | 3840-7680 | |||
| Grey Level (bit) | 14-22 | |||
| Max Power Consumption(w/㎡) | 800 | |||
| Input Voltage（Vac/hz） | 100-240/ 50-60 | |||
| IP Rating | IP66 | |||
| Products Weight(kg) | 23-27 | |||

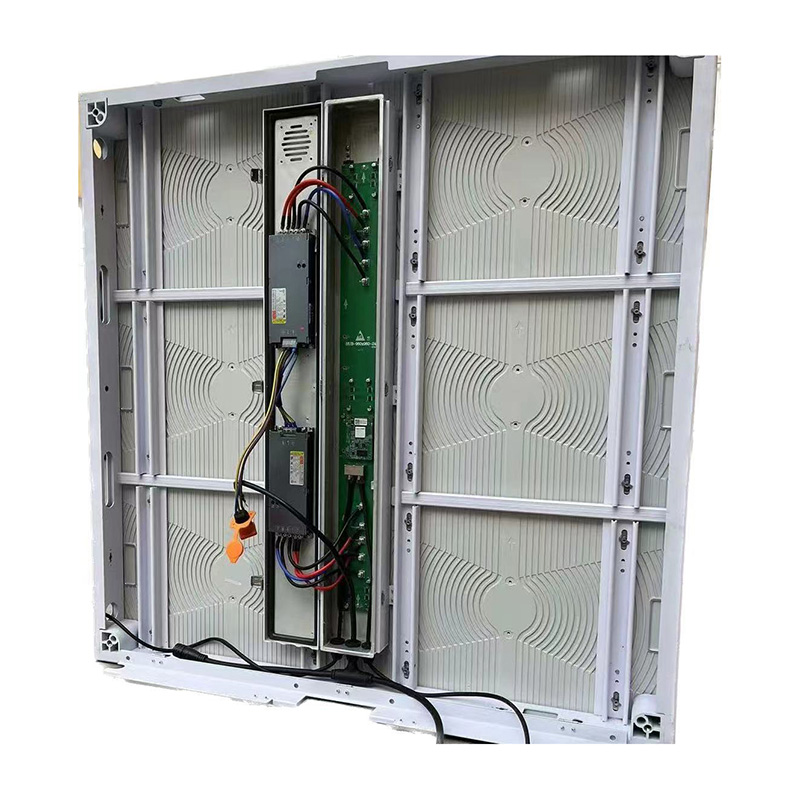

| Service Accessibility | Front and Rare Maintenance | |||
